SPECIFICATIONS
Brand Name: NoEnName_Null
Voltage: 48V
Origin: Mainland China
Design: Brushless
Wattage: > 400w
Certification: CE
Motor Type: Brushless Gear Hub Motor
About Shipment
FAQ:
1. How do I know if this rear hub drive motor fits for my bike?

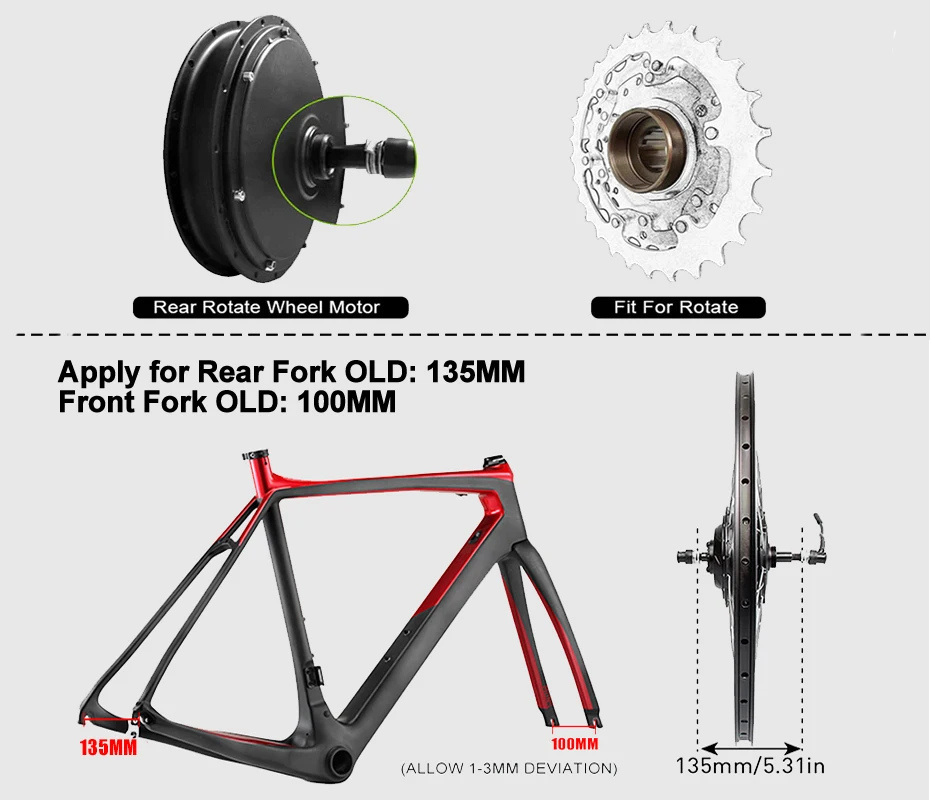

Re: The rear hub motor fits for the bike with rear drop out size "135mm", The front hub motor fits for the bike with front drop out size "100mm".
2. How to know the rim is suitable for my tire?
Re: Check the item description below, there has the information about rim.
3. My bike is 28 inch, which one could I choose?
Re: Mostly, you could choose the 700C rim (inner diameter- 598mm, outer diameter- 652mm). But you Could send us the detailed specification of your tire for confirmation.
4. My bike is 29 inch, which one could I choose?
Re: Following 29 inch can choose the 700C rim.
Re: If you have a hydraulic brake, you can choose the brake sensor cable, which is easier to install.

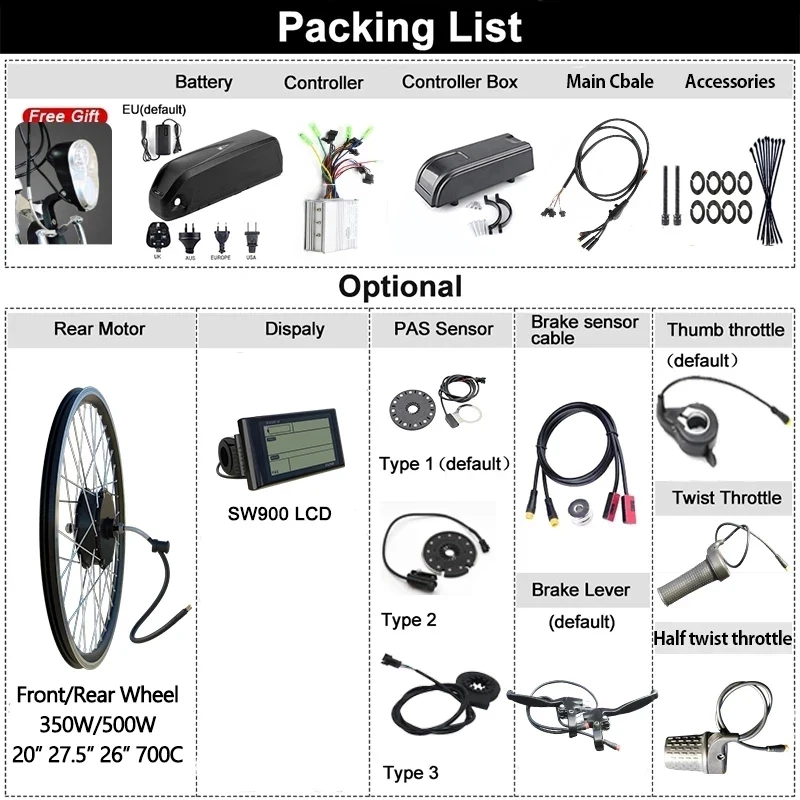

Packing List:

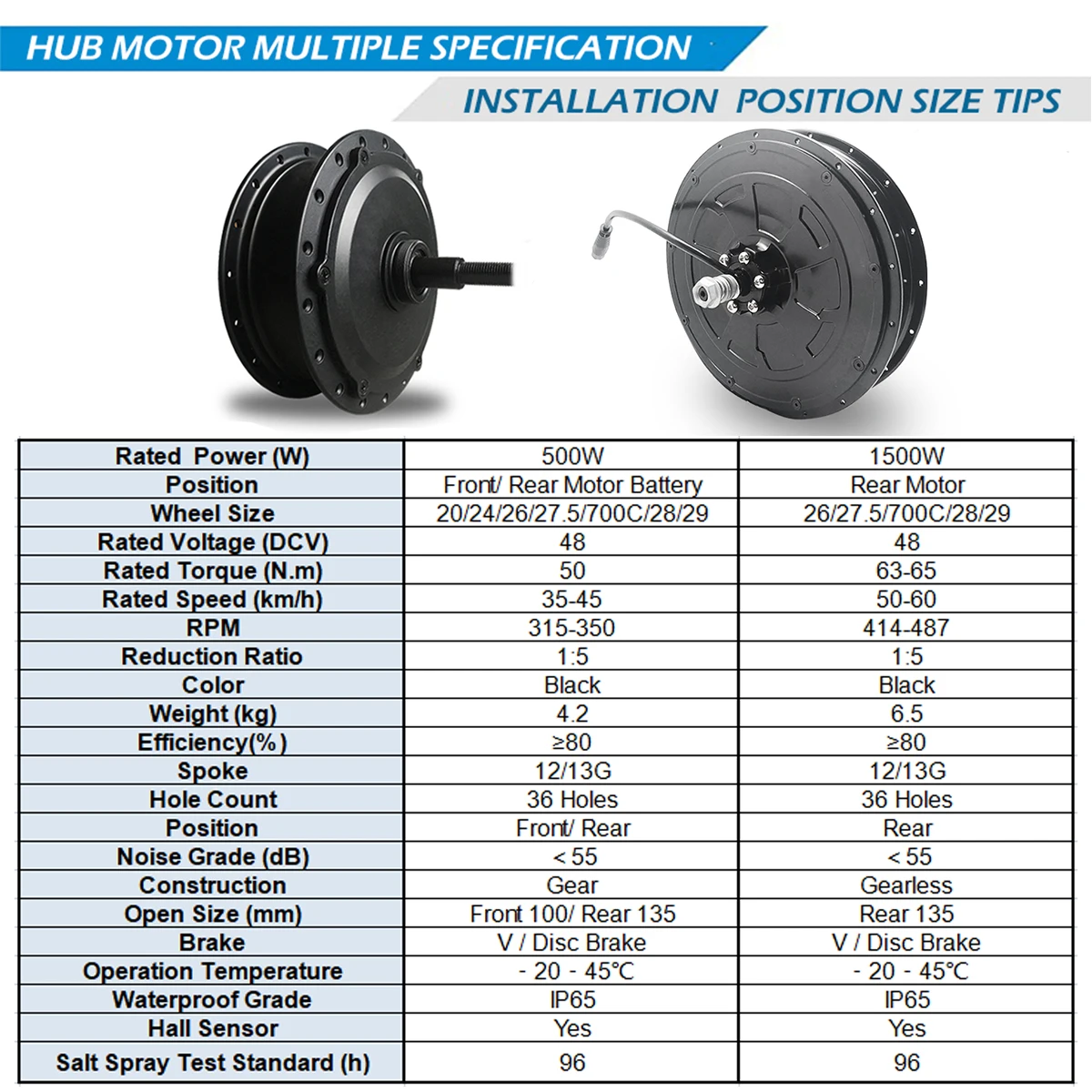

1 PCS * Front/Rear Hub Motor With Rim & Spokes

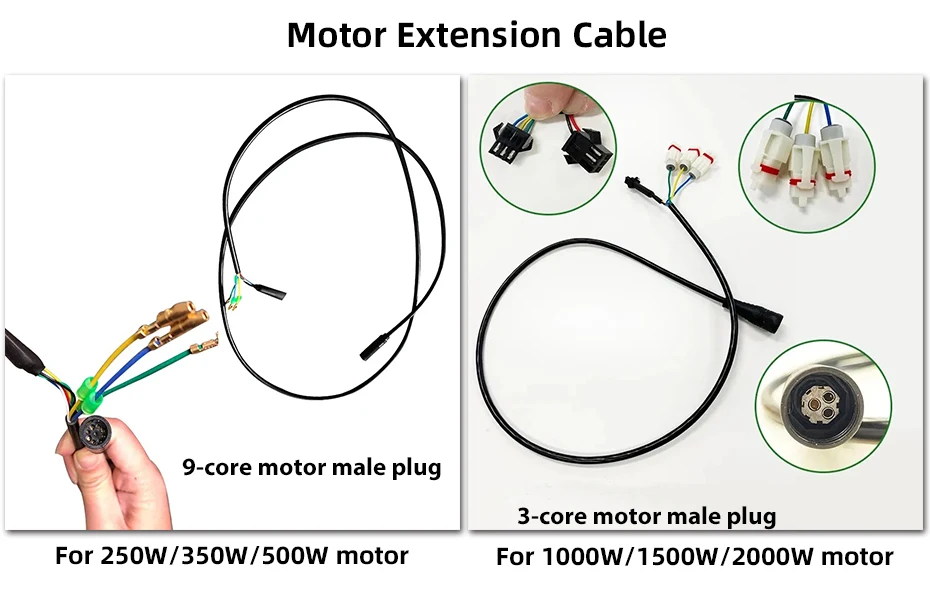

1 PCS * Motor Extension Cable
1 PCS * 48V 13Ah/20/24Ah Hailong battery built in 18650 cells
1 PCS * Battery charger (Europe Standerd, If you are not European, we will add conversion plug. )

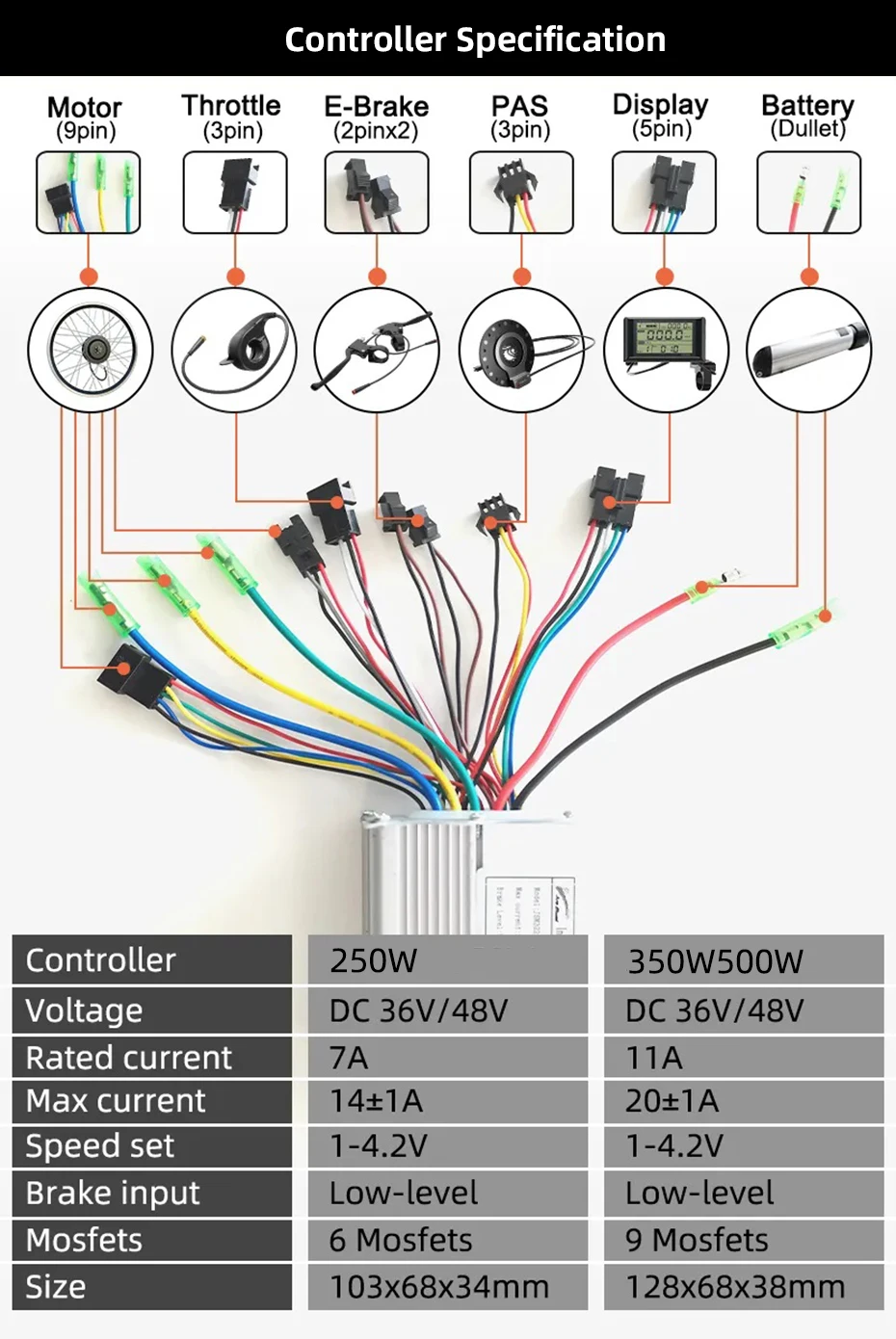

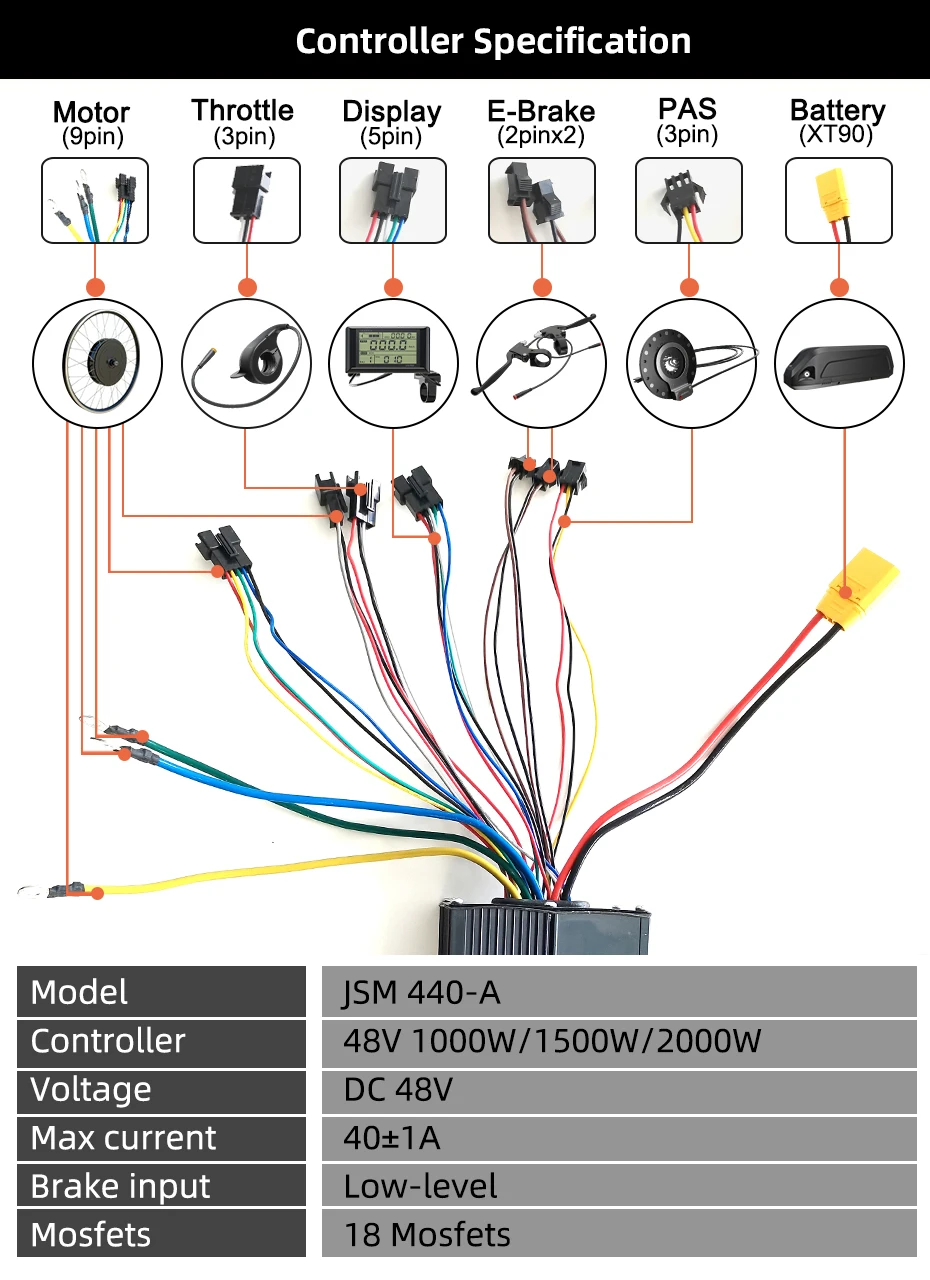

1 PCS * Motor Controller
1 PCS * Controller Box
1 PCS * Display( SW900 LCD)

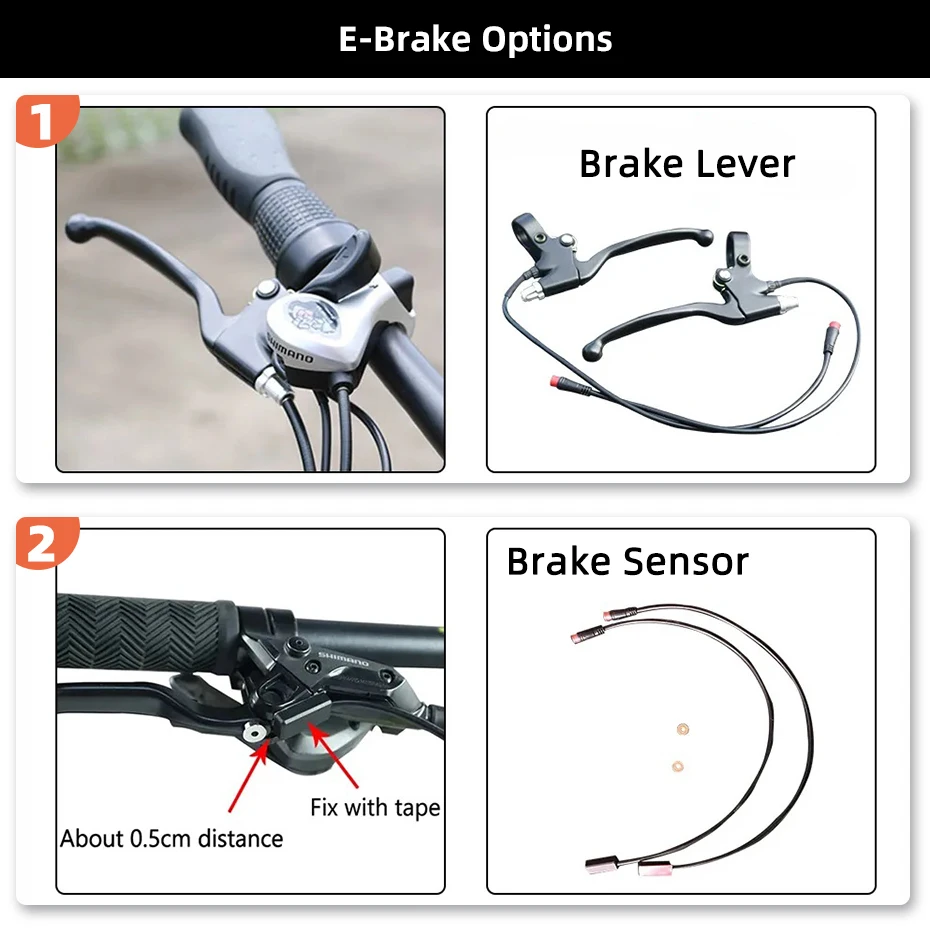

1 Pair * Brake Levers or Brake Sensors

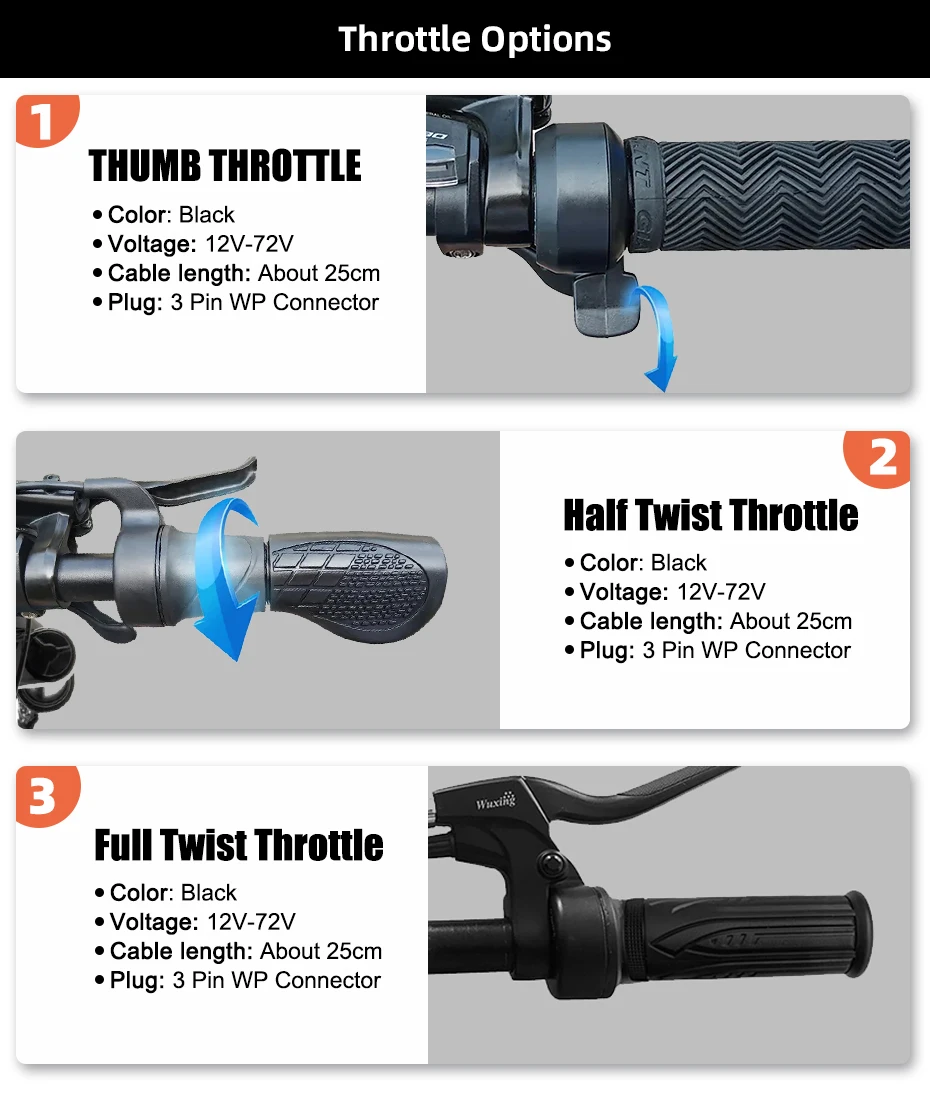

1 PCS * Thumb Throttle (thumb throttle/ twist/ half twist)

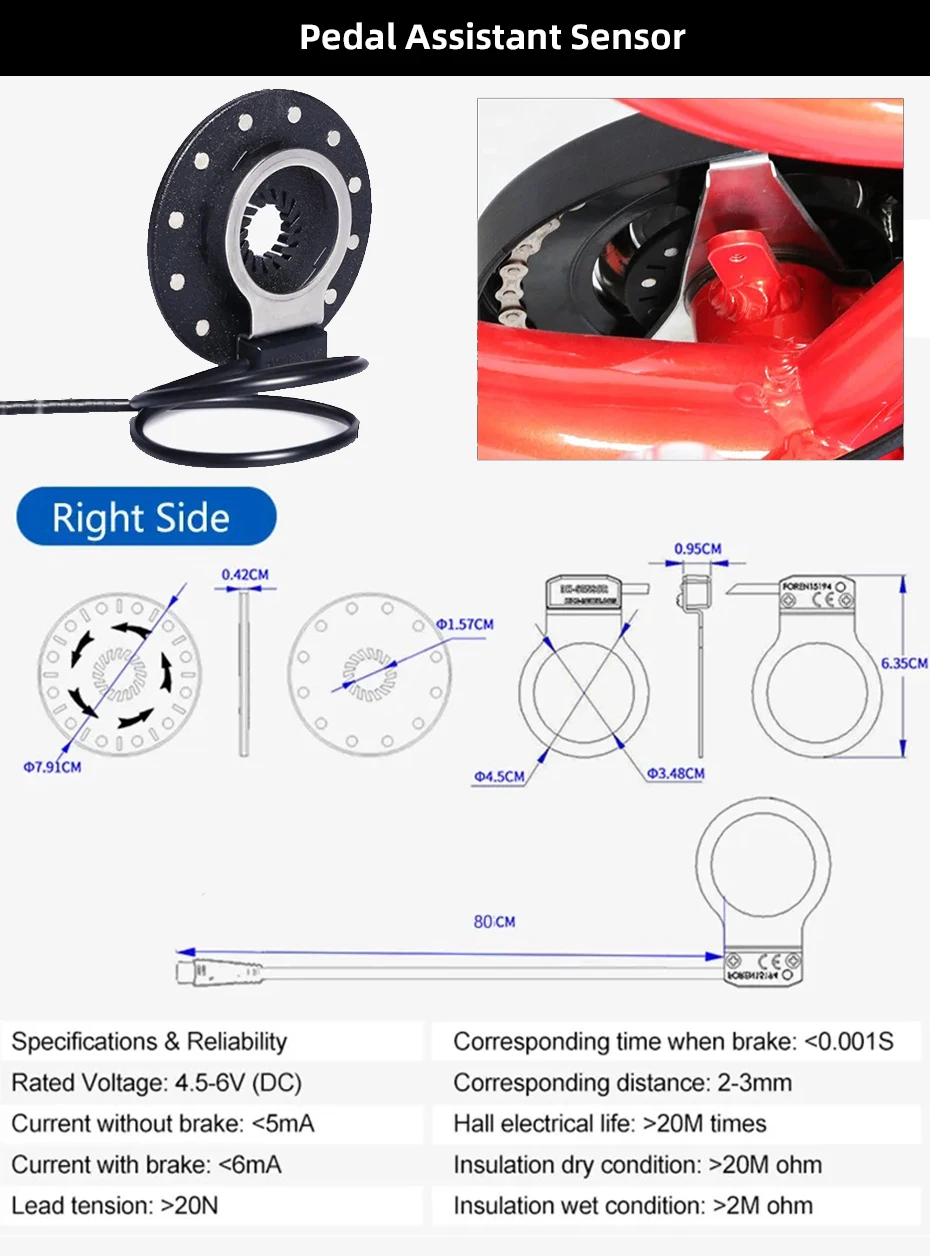

1 PCS * 12 Magents PAS Sensor

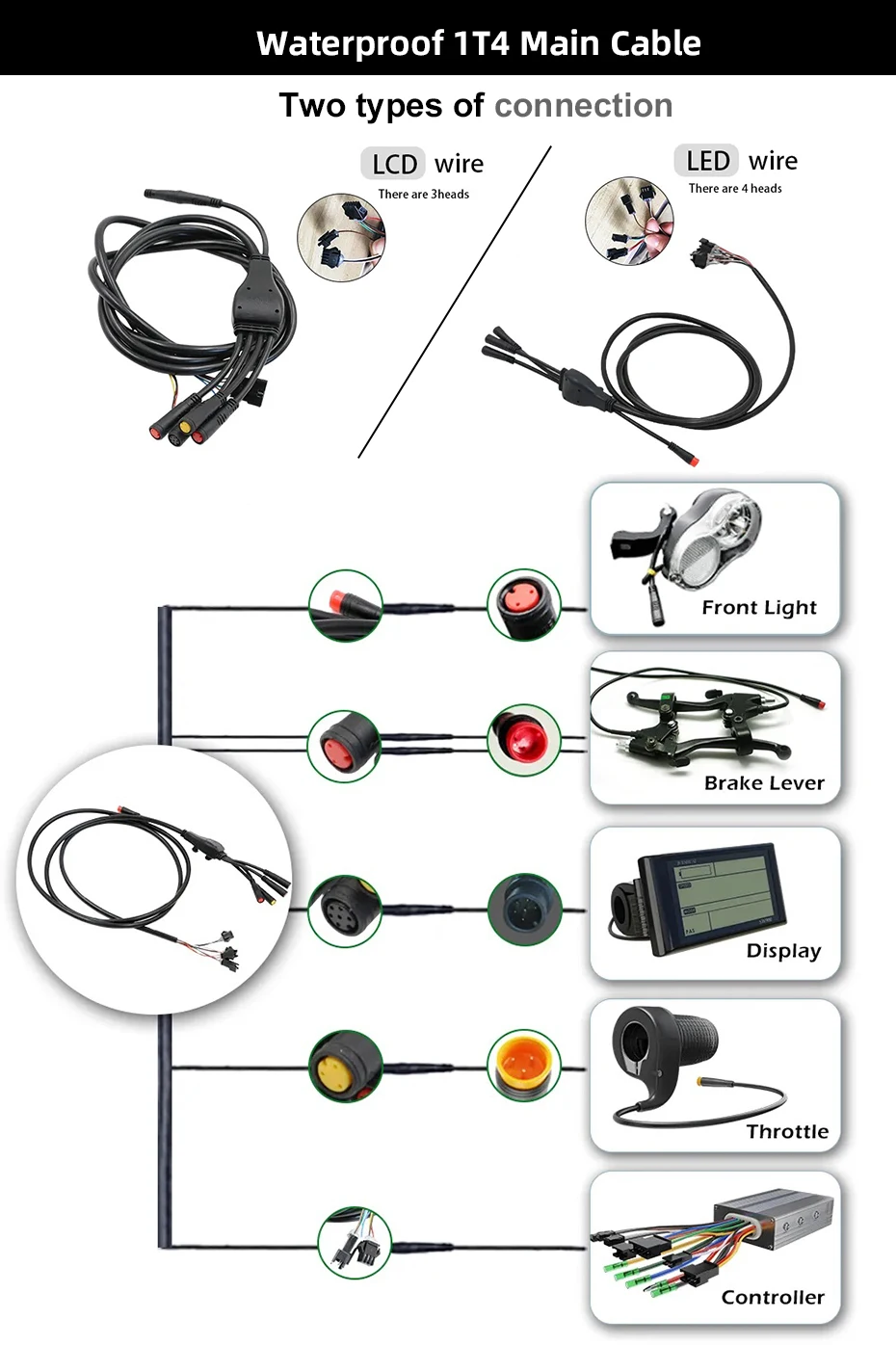

1 PCS * 1T4 Cable

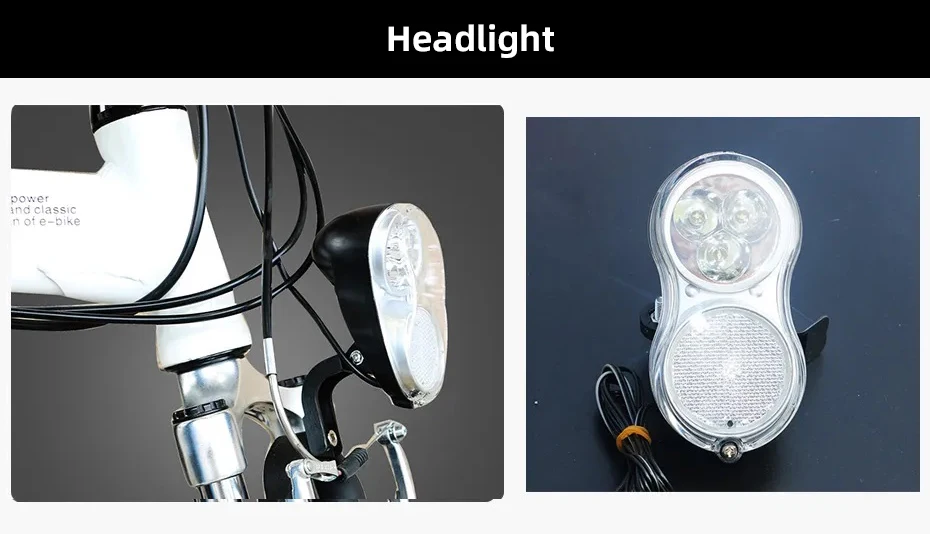

1 PCS * Headlight
Kindly leave us order message in this format after you place an order:
1. Throttle: thumb/half throttle/twist
2. Brake lever/ brake sensor
* If you do not leave the message to us, we will choose brake lever and thumb throttle for you. Thanks!
* This rear motor can fit 6 speed and 7 speed freewheel.
1) UART protocol: Equipped with independent press buttons
2) Speed：Real-time SPEED，MAX SPEED， Average SPEED
3) kmh/mile：Kmh/MPH according to habit
4) Battery level：Indicates the battery level in real time
5) Head light control：Press button to power on/off
6) Back light adjustment：3-level adjustment
7) Assist level：From 0 to 5, press button to change assist level, 0-no assist, 5-default value
8) Distance：ODO/Trip/Driving duration
9) Error code：Please refer to appendix table 1 for definition
10) 6km mode：In this mode, it will display “WALK” on the screen
11)Parameter setting：Set parameters, such as: wheel size, speed limit etc
